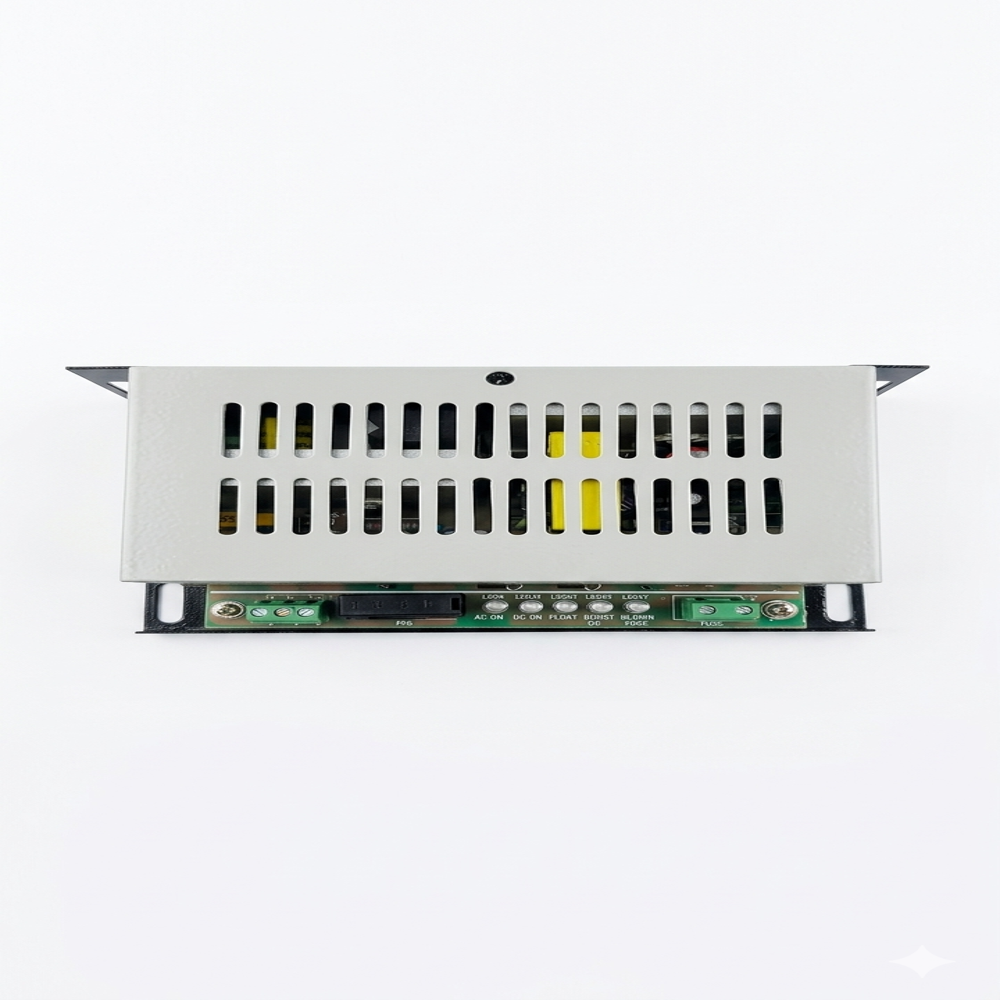

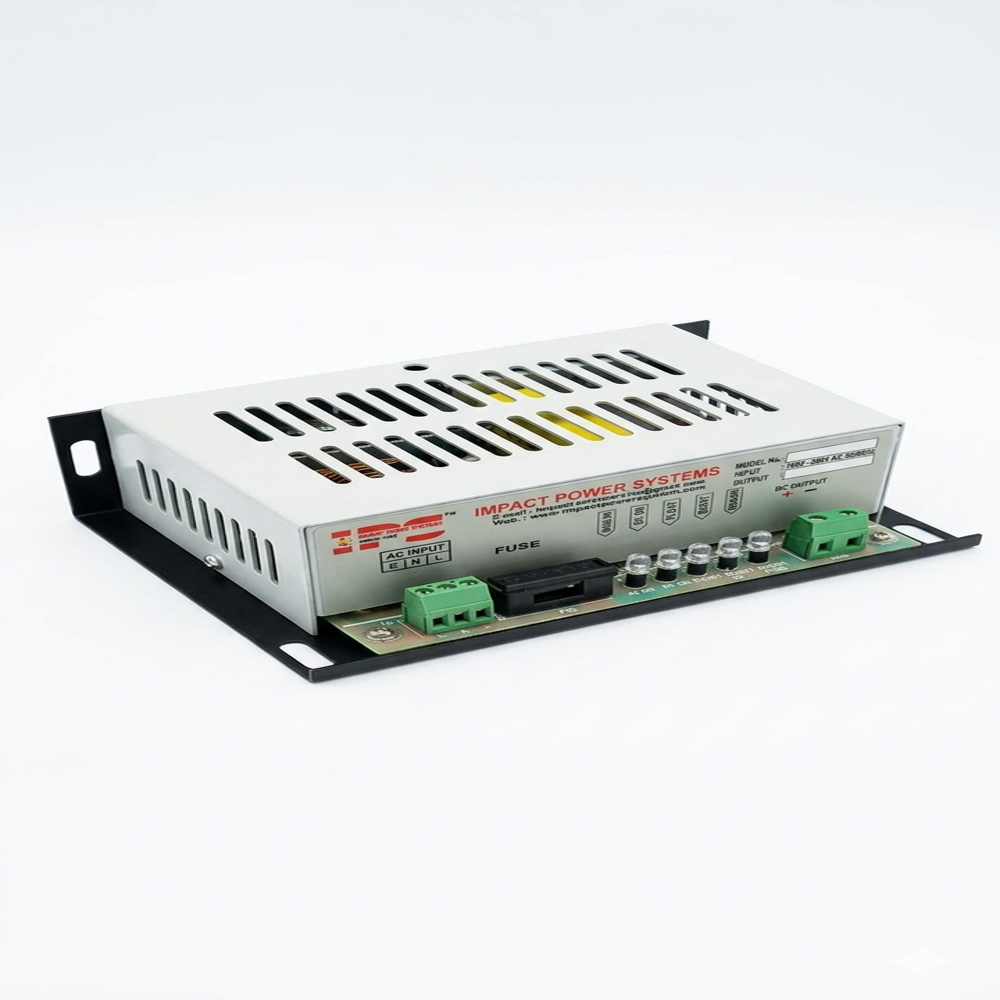

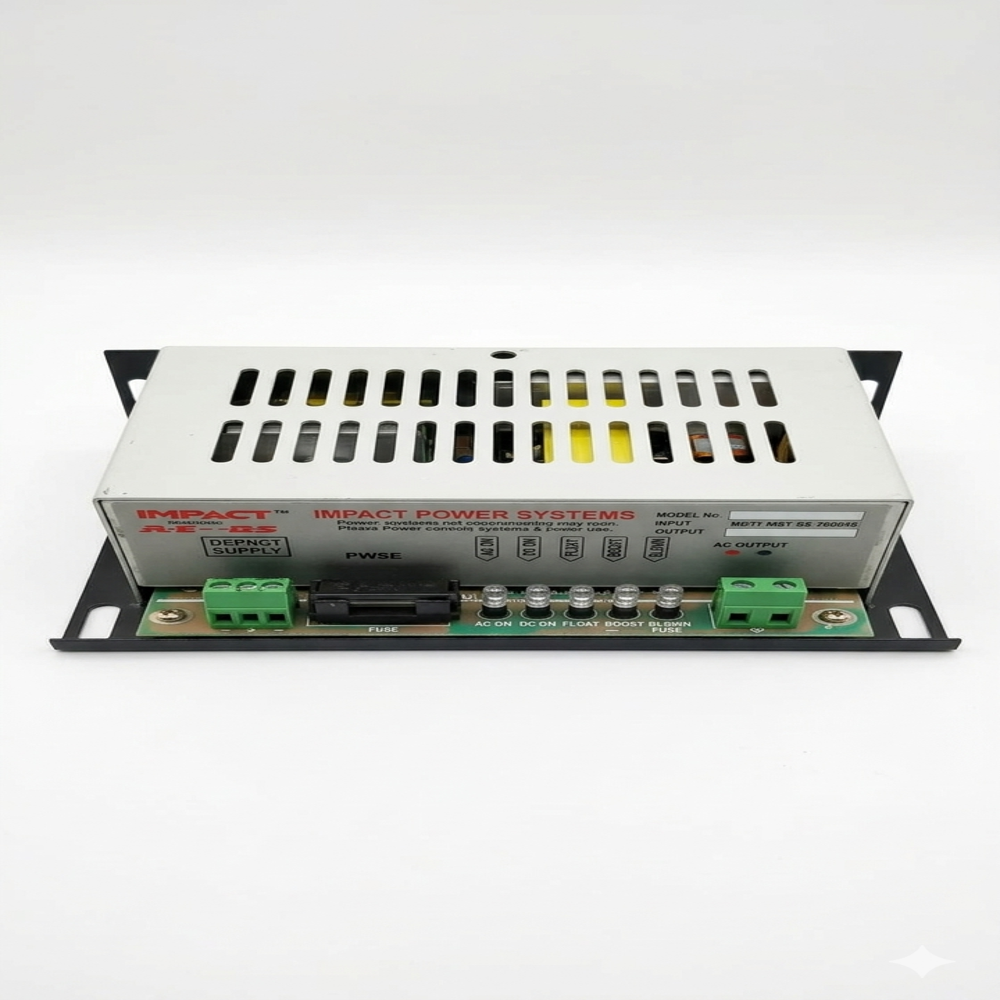

IPS 24V/5A Dg Generator Battery Charger

Name: IPS 24V/5A Dg Generator Battery Charger
Brand: IMPACT POWER SYSTEMS
Price: 1300.0 INR
Availability: InStock

Price 1300.0 INR/ Piece

Get a Price/Quote

MOQ : 30 Pieces

IPS 24V/5A Dg Generator Battery Charger Specification

Ambient Temperature
0C to 50C

Capacity
5A Charging Current

Dimension (L*W*H)
200mm x 120mm x 65mm

Power
120W

Suitable For
DG Generator, Genset Batteries, Industrial Applications

Product Type
DG Generator Battery Charger

Material
Powder Coated Metal Enclosure

Socket Type
Terminal Block

Input Voltage
180-270V AC

Output Voltage
24V DC

Usage
Charging Generator Battery

Warranty
1

Rated Frequency
50/60 Hz

Voltage Range
24V Output

Rated Voltage
24 Volt (V)

Size
Standard Compact

Weight
Approx. 1.2 kg

Charger Type
Automatic Battery Charger

Cooling Type
Natural Air Cooled

Mounting Type
Panel/Wall Mountable

Model Number
IPS MT 5E 2006B

Boost/Float Charging Mode
Yes

Indicators
LED Indication for AC ON, DC ON, FLOAT, BOOST

Ripple Voltage
<1%

Fuse Protection
Yes - Inbuilt Fuse Provided

Overload Protection
Yes

Short Circuit Protection
Yes

Efficiency
>85%

IPS 24V/5A Dg Generator Battery Charger Trade Information

Minimum Order Quantity
30 Pieces

Delivery Time
5 Days

IPS 24V/5A Dg Generator Battery Charger About

The IPS 24V/5A DG Generator Battery Charger is a high-performance and reliable charging solution designed for diesel generator starting batteries. Built with advanced SMPS technology, it ensures efficient and stable charging for 24V batteries used in DG sets.

Automatic Charging Modes for Battery Longevity

This charger features automatic switchable BOOST and FLOAT modes to optimize battery charging according to condition. The boost mode delivers fast, efficient charging when battery levels are low, while the float mode maintains full charge without the risk of overcharging, helping to extend battery life.

Comprehensive Protection Features

Built with user and equipment safety in mind, the IPS MT 5E 2006B includes inbuilt fuse, overload, and short circuit protection. These features help prevent electrical faults and equipment damage, ensuring trouble-free operation in demanding environments.

Easy Installation and Monitoring

The charger's compact design and panel or wall mount capability make it suitable for diverse installation settings. LED indicators provide clear visual status on AC power, DC output, and operating mode, allowing users to monitor operation at a glance.

FAQ's of IPS 24V/5A Dg Generator Battery Charger:

Q: How do I install the IPS 24V/5A DG Generator Battery Charger?

A: The charger is designed for easy panel or wall mounting using standard hardware. Simply connect the input to an AC source (180-270V AC) and the output terminals to your 24V generator battery as indicated in the manual.

Q: What benefits does the automatic BOOST/FLOAT charging mode offer?

A: The automatic BOOST/FLOAT modes help optimize battery charging, ensuring quick charge recovery in BOOST and continuous maintenance at FLOAT, minimizing overcharging and prolonging battery lifespan.

Q: When should I use this charger for my generator battery?

A: This charger is suitable for both regular maintenance and emergency charging of 24V DG generator or genset batteries. Use it whenever your batteries need charging or require maintenance to ensure reliable generator performance.

Q: What safety features are included in this battery charger?

A: The charger is equipped with inbuilt fuse protection, short circuit protection, and overload protection, safeguarding both the charger and connected batteries from electrical hazards.

Q: Where can this battery charger be used?

A: Due to its durable and compact design, this charger is ideal for DG generators, genset units, and various industrial battery charging applications in settings such as factories, workshops, and generator rooms.

Q: How do the LED indicators assist during the charging process?

A: LED indicators clearly display the status of AC power, DC output, and charging mode (FLOAT/BOOST), making it easy for users to monitor charger operation and battery status at a glance.

Q: What is the recommended ambient temperature range for optimal performance?

A: The charger is optimized for operation in ambient temperatures ranging from 0C to 50C, ensuring reliable performance in most industrial and generator environments.
